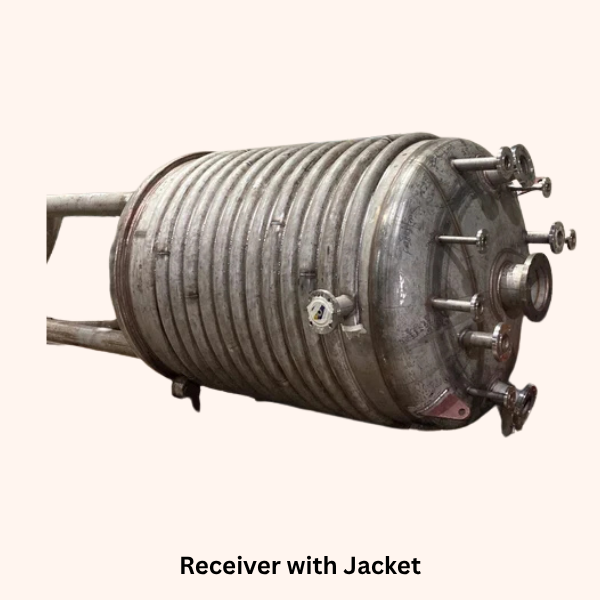

Reciever with Jacket
Reciever with Jacket
At Harsha Engineers, we specialize in manufacturing Receivers with Jackets, designed for safe storage and controlled handling of liquids, vapors, and gases in industrial processes. The addition of a jacket allows precise temperature regulation by circulating heating or cooling media around the receiver, ensuring product stability and maintaining required process conditions. Built from high-quality Mild Steel (MS) or Stainless Steel (SS), these receivers are engineered to withstand pressure, temperature variations, and corrosive environments, making them suitable for critical applications.
Our Jacketed Receivers are widely used in pharmaceuticals, chemicals, petrochemicals, and food processing industries, where maintaining product quality and process efficiency is essential. They are available in vertical or horizontal designs with customizable features such as nozzles, safety valves, and manholes. Known for their durability, efficiency, and low maintenance, these receivers ensure reliable performance while meeting stringent industry and safety standards. At Harsha Engineers, we offer tailor-made jacketed receiver solutions to meet specific process requirements.
Material of Construction (MOC): Mild Steel (MS), Stainless Steel (SS 304 / SS 316 / SS 316L), Alloy Steel.
Capacity Range: 50 Liters to 50,000 Liters (custom-built).
Design Type: Vertical / Horizontal cylindrical vessel with dished or flat ends.
Design Pressure: Vessel – Atmospheric to 10 bar; Jacket – up to 6 bar.
Design Temperature: -20°C to +200°C (depending on service and MOC).
Jacket Type: Conventional jacket / dimple jacket / limpet coil jacket.
Heating / Cooling Medium: Steam, hot water, hot oil, chilled water, brine.
Orientation: Vertical (leg or skirt support) / Horizontal (saddle support).
Nozzles & Fittings: Manhole, inlet/outlet, vent, drain, sampling port, pressure gauge, thermowell.
Surface Finish:
Internal: Mirror / matt finish, pickled & passivated (for SS).
External: Painted, polished, or cladded with SS/aluminum.
Insulation (Optional): Mineral wool / PU foam with SS or aluminum cladding.
Agitator Provision: Optional top or side-mounted agitator with mechanical seal.
Testing: Hydrostatic / pneumatic testing of both vessel and jacket.
Compliance Standards: ASME, IS, GMP, API, international codes.
A Receiver with Jacket works by surrounding the main vessel with a secondary jacket that allows the circulation of heating or cooling media such as steam, hot water, chilled water, or thermal fluids. This design ensures uniform heat transfer to the stored medium, maintaining the required temperature for safe storage and smooth processing. For maximum effectiveness, the system has options for insulation, level indicators, safety valves, and inlet/outlet nozzles.
- Pharmaceutical Industry – maintaining sterile and controlled storage conditions.
- Chemical Industry – storing and conditioning heat-sensitive liquids.
- Food & Beverage Industry – temperature control of milk, juices, and edible oils.
- Storage of volatile or temperature-sensitive chemicals in the petrochemical industry.
- Regulated storage of special fluids in water treatment and process plants.
- Through jacketed heating or cooling, precise temperature control is possible.
- Enhanced product quality and safety.
- Custom-built designs to meet specific process requirements.
- Construction that is long-lasting and durable.
- Low maintenance with reliable performance.
Conclusion
For businesses that require temperature-sensitive storage and processing, our Receivers with Jackets are the ideal choice. Harsha Engineers offers receivers that guarantee safety, efficiency, and consistent performance in demanding industrial applications with robust engineering, premium materials, and stringent quality standards.
