Rotary Trommels
Rotary Trommels
Rotary Trommels, also known as rotary drum screens, are highly efficient mechanical screening machines used for separating materials by size through cylindrical rotating screens. These robust and versatile systems are widely utilized in industries such as mining, waste management, aggregate processing, fertilizer production, and biomass handling for size classification, screening, and material separation.

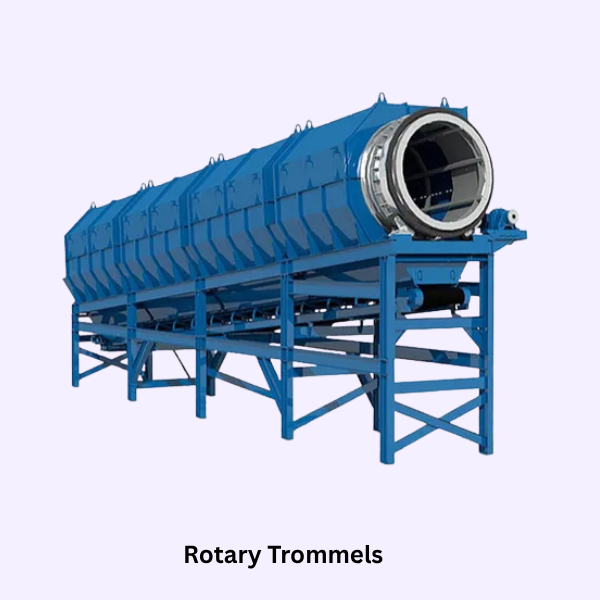

A rotary trommel consists of a cylindrical drum mounted at a slight incline and supported by a frame with motor-driven rollers. As the drum rotates, material is fed into one end and tumbles through the length of the screen. Finer particles fall through the screen openings, while oversized materials exit at the opposite end. The screen size, drum length, rotation speed, and inclination can all be tailored to the application.
At Harsha Engineers India, our rotary trommels are built for rugged performance, minimal maintenance, and extended service life. We offer custom-built trommels in mild steel, stainless steel, or abrasion-resistant materials, ensuring compatibility with both wet and dry screening processes.
Material of Construction (MOC): Mild Steel (MS), Stainless Steel (SS 304 / SS 316), or customized alloys.
Drum Diameter: 500 mm to 3,000 mm (customizable).
Drum Length: 1,000 mm to 10,000 mm (based on application).
Screen Opening Size: 1 mm to 100 mm (perforated plates or woven mesh).
Capacity Range: 1 TPH to 200 TPH (tons per hour).
Drum Inclination: 0° to 10° adjustable.
Rotation Speed: 5 RPM to 25 RPM (variable with VFD).
Drive System: Electric motor with gearbox, chain or belt drive.
Feed System: Hopper or conveyor-fed inlet.
Discharge Outlets: Oversized material outlet & undersized screened outlet.
Cleaning System: Internal lifters, brushes, or spray bars (for wet screening).
Mounting: Skid-mounted / wheeled mobile / stationary.
Power Requirement: 2 HP to 50 HP (depending on drum size & load).
Surface Finish: Painted / powder coated / SS polished finish.
Optional Features: Dust covers, water spray system, liners for abrasive materials.
Compliance: Designed as per industry and GMP standards.
A large cylindrical drum with a rotating axis is a rotary trommel. Materials are lifted and dropped along the length of the drum as they enter the trommel. The openings in the screen enable precise and efficient material classification by separating smaller particles from larger ones.
- Mining is the process of separating minerals and ores.
- Solid Waste Management – screening and segregation of waste.
- Separation of sand, gravel, and aggregate in the construction industry.
- Grading of grains, seeds, and biomass in agriculture and food
- Provides efficient material separation and classification.
- Reduces processing time and manual labor.
- Ensures minimal blockages and consistent output.
- Designed specifically to meet a variety of industrial requirements.
Conclusion
Harsha Engineers’ Rotary Trommels are designed to be durable, efficient, and reliable in demanding applications. Our trommels provide superior screening solutions for mining, waste processing, and construction to boost productivity and cut operating costs.
